How To Remove And Replace Front Door Belt Molding

June 07, 2025

If your Toyota's front window has a damaged weather belt molding, you don’t necessarily need to visit a repair shop and pay high labor costs for its replacement. Taking care of the job yourself can save you money while giving you hands-on experience with car maintenance. This guide provides comprehensive instructions for replacing the belt molding on your Toyota. While steps might vary slightly depending on the model, the overall process remains similar enough for you to follow along easily.

Before starting, ensure you have all the necessary tools and replacements. Opting for original equipment manufacturer (OEM) parts over aftermarket alternatives is generally recommended. Although going to a Toyota dealership might seem like the safest bet, keep in mind that dealerships often charge significantly more due to hefty markups. Fortunately, shopping online offers an excellent alternative. As an authorized provider of genuine OEM Toyota parts, we can help you save considerably through our wholesale pricing options. Check if your specific Toyota model has replacement belt moldings available by searching our inventory.

Step 1: Acquire a Replacement Belt Molding

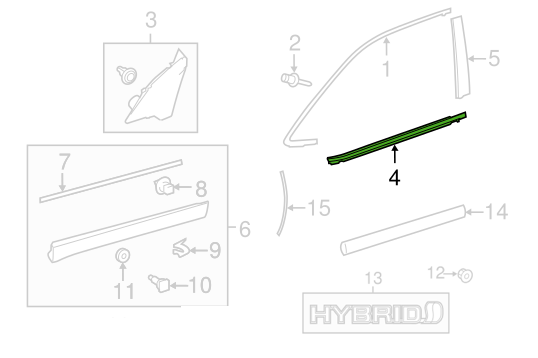

Replacement belt molding

Once you've secured your replacement parts, begin the replacement procedure. Start by removing the faulty belt molding from your front door. For this example, we'll refer to the Tundra belt molding window weatherstrip replacement process. However, owners of other Toyota models should find these steps applicable.

  1. First, open the door and lower the window. This allows easier access to the end of the belt molding without risking damage to either the front or rear doors.
  2. Behind the belt, locate a small clip. Use your fingers to gently push or pull the end of the belt molding upward until it clicks free from the frame.
  3. Continue pushing or pulling along the length of the belt molding until you reach the opposite end. Near the side mirror, the belt molding slides under the weatherstrip, so avoid pulling it straight up. Instead, carefully lift the end slightly before sliding it out.

Step 2: Install the New Belt Molding

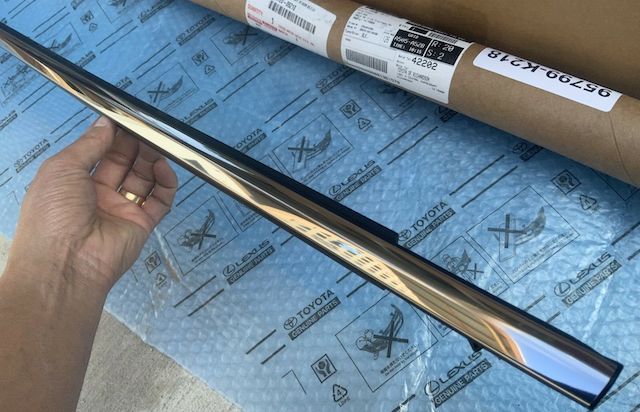

OEM toyota belt molding

With the old belt molding removed, it’s time to install the new one. Follow these straightforward steps:

  1. Inspect the new belt molding. One end features a small clip, while the other has a slight extension. The extension should face toward the side mirror when installed.
  2. Align the clip on the opposite end with the door frame.
  3. Gently press the clip into place until it locks securely.
  4. Smoothly push down the remainder of the belt molding until it fits snugly against the frame.

Voilà! You’ve successfully replaced the belt molding without needing any special tools. Doing it yourself eliminates unnecessary expenses and gives you confidence in handling future repairs.

Have any queries about locating the perfect belt molding for your Toyota model? Feel free to reach out to us anytime!

Written by Jason Lancaster
